Brake booster pistons unusable?

[bobs600honda]

I recently received a booster rebuild kit from Mike in NC but think I will be sending it back for someone who needs it more than I as I think (from reading 100's of posts about the booster) my pistons are worn to far with slight copper showing and can feel the cylinder is pitted requiring a re- sleeve.
Member thoughts please!
Thanks to all.
Bob
Tracy

[Bill]

Hi Bob;

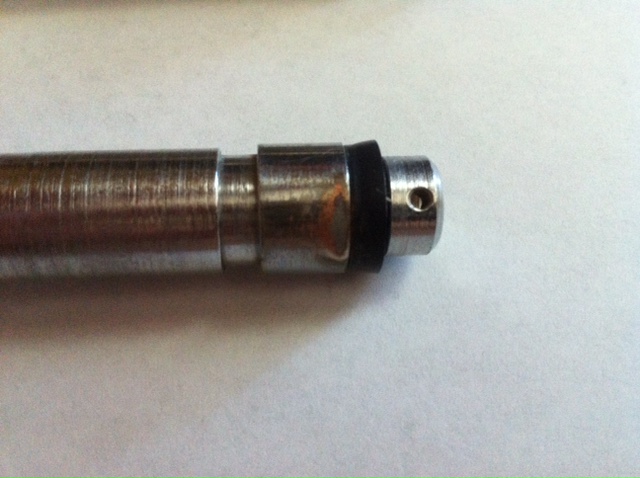

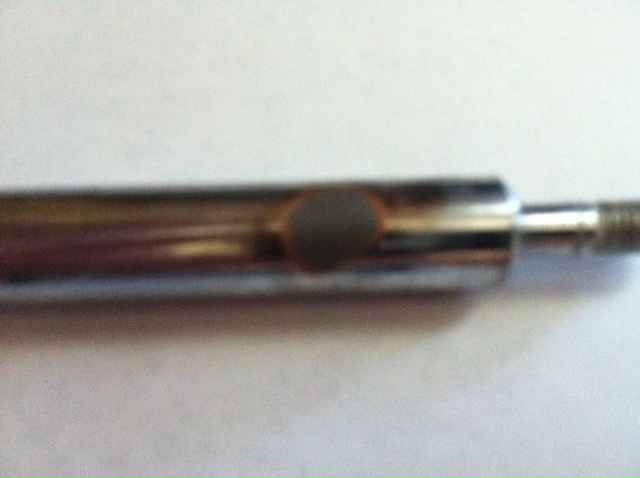

Yes, if the cylinders are pitted and the pistons worn as in your pictures they need to be fixed before putting it back together with your new seals.

[feltonminicycle]

I had some of the step pistons rechromed and I had the 12mm pistons remade in solid brass then I would buff them to a high gloss. I can sell you a rechromed for $35 but not sure if I have any more brass ones but you could have a machine shop make you one.
If you haven't seen it I have tear down pics in Albums on this group and a same set of photos on Vintage Honda S N Z 600 on Facebook. I tried putting links to both albums but Neo-Groups whatever seems to take over and just links it back to the main group.
Miles

[Robert James]

Thanks for the offer - very temping .  I would need to get the cylinder re-sleeved - will check with local machine about that and making new piston from brass.
The big problem I have is determining if the large diaphragm is good or not.  I cannot tell by inspection.  It looks okay, no cracks tears etc.
My concern is dumping a bunch into this booster only to have it fail due to a bad diaphragm.
Since I am planning to rebuild brake system and change to dot5, I really want to do this once!
I will get back to you after I meet up with the machine shop.
Bob
Tracy
Sent from my iPhone

On Aug 30, 2014, at 11:42 PM, "
z600miles@...
[2cylinderhondas]" wrote:
I had some of the step pistons rechromed and I had the 12mm pistons remade in solid brass then I would buff them to a high gloss. I can sell you a rechromed for $35 but not sure if I have any more brass ones but you could have a machine shop make you one.
If you haven't seen it I have tear down pics in Albums on this group and a same set of photos on Vintage Honda S N Z 600 on Facebook. I tried putting links to both albums but Neo-Groups whatever seems to take over and just links it back to the main group.
Miles

[feltonminicycle]

There are 3 steps in the bore and 1 hole in the top or bottom depending on the booster which might need sleeved as well. Sleeving with Sierra was about $65 each diameter, so sleeving a booster is a real investment. If the large diaphram is not distorted it can be cleaned and easily reglued to the piston plate. Here is one I did plus the how to pics in the photos section of this group:
Honda 600 AZ600 Coupe AN600 Sedan Brake Booster Diaphram
Honda 600 AZ600 Coupe AN600 Sedan Brake Boost...
The one major component in the Honda 600 brake booster that normally gets distorted from sitting in brake fluid.
View on www.ebay.com
Preview by Yahoo
Miles
